Have you ever invested in an expensive security camera system, only to discover that the thief who stole your car from the garage at night was just an unclear “ghost” in your recordings? Or perhaps you couldn’t identify the face of the person who entered your store due to poor lighting at the entrance? These are not just unfortunate scenarios; they are a direct result of a common mistake that costs many people their money and security: placing the wrong camera in the wrong place. This comprehensive Security Camera System Guide aims to help you avoid such pitfalls.

Many believe that securing any location depends on installing as many security cameras as possible. For more information on the latest technologies in this field, you can visit the official Hikvision website [1]. However, the shocking truth is that one “smart” and carefully chosen camera can be more effective than ten cameras installed randomly. The problem isn’t in “quantity” but in “quality”; each location has its specific needs, and each need requires a particular type of security camera with precise technical specifications. This practical Security Camera System Guide will walk you through how to choose the ideal system that intelligently protects your property, rather than just consuming your money. This Security Camera System Guide will ensure you make informed decisions.

The building entrance is the first line of defense and the most critical monitoring point. Here, you don’t just need to record movement; you need to clearly identify everyone who enters and exits. The entrance camera must be capable of capturing facial details accurately, even in challenging lighting conditions, such as direct sunlight at noon or shadows at other times.

• Identity Verification: It’s the primary location for identifying visitors, whether they are welcome guests or unwelcome intruders.
• Crime Deterrence: The mere presence of a clear, high-quality camera at the entrance acts as a strong deterrent to potential criminals.

The camera here must have specific features, most importantly:

• WDR (Wide Dynamic Range) Technology: This is the most important feature for an entrance camera. This technology allows the camera to handle extreme contrasts in lighting, preventing “dark” or “overexposed” images when a person is standing in front of a strong light source (like an open door leading to the street). The result is a clear image of the person’s facial details and the background simultaneously.
• High Resolution (Full HD 1080p or higher): For precise details of faces and clothing, accept nothing less than 1080p resolution. The higher the resolution (e.g., 4MP or 4K), the greater your ability to zoom in later without losing quality.
• Wide-Angle Lens: To cover the largest possible area of the entrance and its surroundings, choose a camera with a wide viewing angle lens (around 2.8mm).

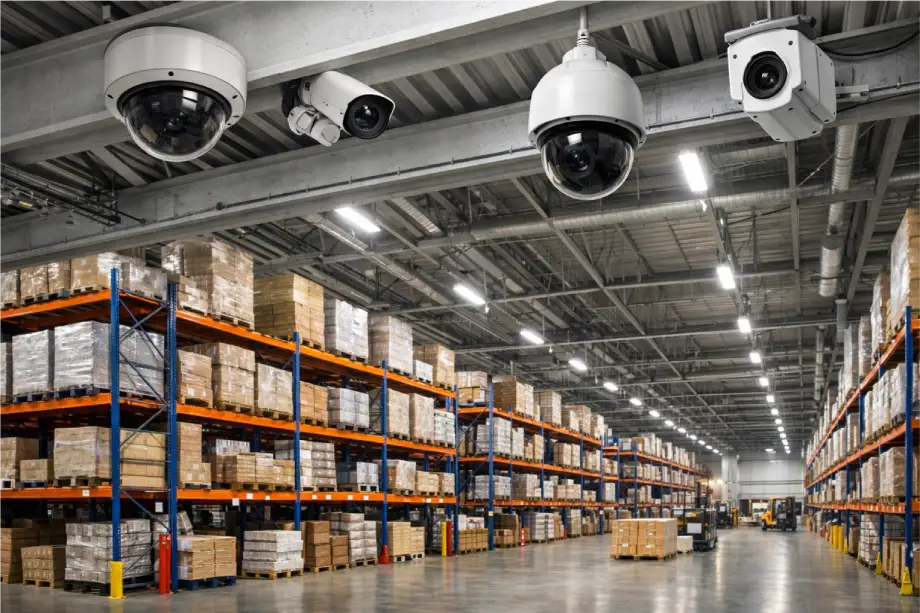

Warehouses and garages present a different challenge. These areas often have poor lighting, vast spaces, and contain valuable assets. The goal here is not just identity verification, but monitoring any unauthorized movement over long distances, even in complete darkness.

• Asset Protection: Warehouses contain goods and vehicles, making them prime targets for theft.
• 24/7 Monitoring: These locations require continuous monitoring day and night.

• Powerful Night Vision (IR – Infrared): Infrared cameras are the traditional choice for vision in the dark. Ensure that the IR range is suitable for the area (30 meters or more). The image will appear in black and white, but it will be clear enough to detect movement.
• Weather and Dust Resistance (IP66/IP67): If the camera will be installed in a semi-open area or exposed to dust and humidity, an IP (Ingress Protection) rating is essential to ensure its continued efficient operation.
• Advanced Motion Detection: To reduce false alarms caused by animal movement or inanimate objects, look for cameras that support smart motion detection capable of distinguishing between human and vehicle movement.

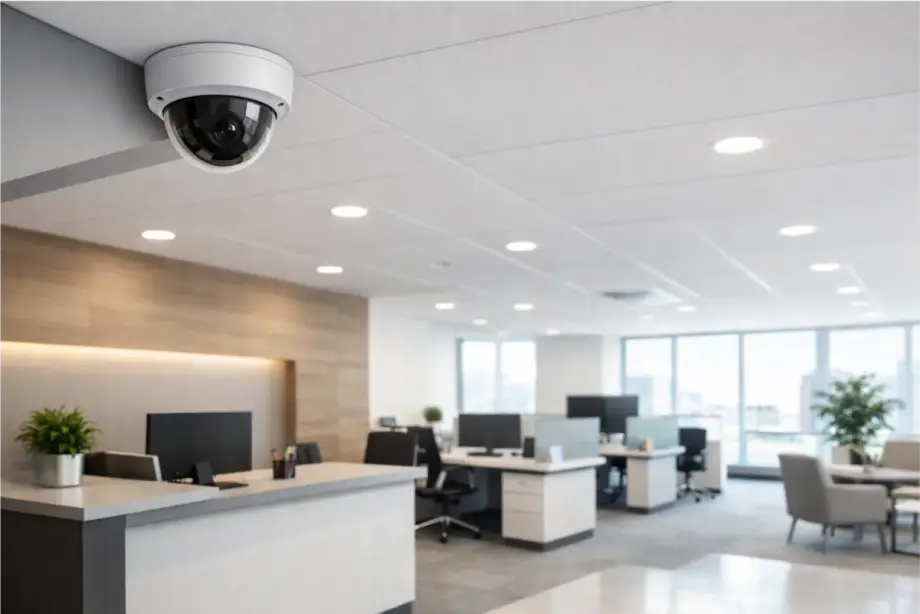

In a commercial work environment, priorities change. You’re not just monitoring to prevent theft, but to oversee workflow, monitor the cashier area, and ensure service quality. Here, small details like banknotes or computer screens become the focus of attention.

• Securing Financial Transactions: Monitoring the payment area is essential to prevent internal theft or fraud.
• Increasing Productivity: A clear surveillance system can help improve employee performance and adherence to work standards.

• Dome Cameras: Characterized by their elegant and unobtrusive design that blends with the decor of the place. Their opaque cover also makes it difficult for people to determine the lens’s direction, providing a sense of comprehensive monitoring.
• Varifocal Lens: This feature gives you great flexibility in precisely setting the viewing angle and zoom level after installation. You can focus on a narrow cashier area or widen the angle to cover the entire customer service area.
• Ultra-High Resolution (4MP or higher): To see details of banknotes or text on screens, invest in a very high-resolution camera.
• Built-in Microphone: In legally permissible areas, audio recording can provide crucial additional evidence in cases of dispute or misunderstanding.

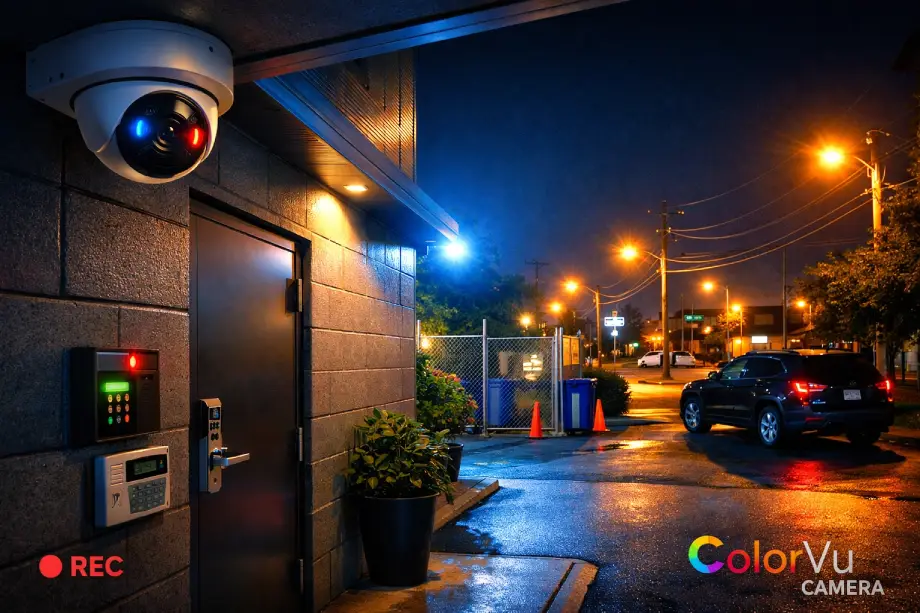

Night monitoring in open outdoor areas (such as factory perimeters, villas, or fences) has always been the biggest challenge. Traditional infrared (IR) cameras provide black and white images that lack important details such as the color of an intruder’s clothes or car. This is where advanced technology comes in.

• Early Detection: Effective night monitoring provides an opportunity to detect threats before they reach the main building.
• Collecting Color Evidence: Obtaining color recordings at night significantly increases the chance of identifying perpetrators and providing strong evidence to the police.

• ColorVu Technology (Color Imaging in Darkness): This technology, pioneered by Hikvision, has changed the game. These cameras use advanced sensors and a very large aperture (F1.0) to gather as much light as possible, allowing them to produce clear, full-color images even in very low-light conditions that appear almost dark to the human eye. This means you’ll get full-color video all night long, not just a faded black and white image.
• Full Weather Resistance (IP67): The camera must be designed to withstand rain, dust, and extreme heat without being affected.

1. Buying the Most Expensive Camera for Every Location: You don’t need a ColorVu camera inside a well-lit office. Smart budgeting means allocating higher-spec cameras to the most important and sensitive areas.
2. Neglecting Installation Quality: The best camera in the world won’t help you if it’s installed at the wrong angle, or if the wires and cables are of poor quality. Professional installation is as important as the quality of the device itself.
3. Forgetting Maintenance: Security cameras require regular maintenance, such as cleaning lenses and ensuring connection integrity. A neglected surveillance system is an ineffective system.

After this detailed explanation, it’s clear that choosing a surveillance system is not just a purchasing process; it’s an investment that requires expertise and a deep understanding of technology and the nature of the location. And here comes the logical question: where do you get these integrated solutions that combine quality, high accuracy, and long-term reliability?

The answer lies in the partnership between leading technology and technical expertise. Hikvision, the world’s largest manufacturer of surveillance systems, offers the advanced technology we discussed, from smart WDR technologies to ColorVu innovations that transformed night monitoring. Their products are synonymous with quality you can rely on for years.

However, even the best products in the world need an expert to put them in the right place. This is where CAM TOWER stands out as a professional and reliable solution in the Egyptian market. We don’t just sell cameras; we provide a comprehensive security system that starts with understanding your needs and ends with providing the peace of mind you deserve.

• 100% Original Surveillance Systems: We are an authorized agent for Hikvision, ensuring you receive original products with their latest versions, not counterfeit or outdated copies.
• Certified and Clear Warranty: All our devices come with a certified warranty you can trust, protecting your investment in the long run.
• Professional Installation with Technical Standards: Our technical team is highly trained to install systems according to precise engineering standards, considering the best angles and extending cables safely and neatly.
• Free Consultation and Custom Design: Before you pay a single pound, we send a specialized technician to inspect your location, understand your security needs, and design a system customized just for you. There is no one-size-fits-all solution.
• Technical Support and After-Sales Service: Our relationship with you doesn’t end with installation. We provide continuous technical support and after-sales service to ensure your system operates efficiently.
• Best Value for Money: Our goal is to provide you with the best possible security solution within your budget, achieving the perfect balance between quality and cost.

Don’t leave your security and the security of your property to chance or ill-considered solutions. Contact us today at CAM TOWER for a free consultation with a specialist, and let us help you “Place the Right Camera in the Right Place.”

Contact and Request a Consultation: camtower.co

[1] Hikvision Official Website: https://www.hikvision.com/en/

**Q1: What is the importance of WDR technology in a *Security Camera System Guide*?
A1: WDR (Wide Dynamic Range) technology is essential for cameras installed in areas with extreme lighting contrasts, such as entrances. This technology prevents images from appearing too dark or too bright, ensuring clarity of details in both illuminated and shadowed areas within the same shot.

**Q2: Is Hikvision ColorVu a key consideration in a *Security Camera System Guide* for night vision?
A2: Yes, Hikvision ColorVu cameras are designed to provide clear, full-color images even in very low-light conditions that may appear almost dark to the human eye. They rely on advanced sensors and a wide aperture lens to gather as much light as possible.

Q3: What is the difference between Dome and Bullet cameras?
A3: Dome cameras are characterized by their elegant and compact design, often used indoors. Bullet cameras are more conspicuous and typically used outdoors, offering greater resistance to weather conditions.

Q4: What is the IP67 standard and why is it important for outdoor cameras?
A4: IP67 is an Ingress Protection rating against solid objects and liquids. It means the camera is fully protected against dust and can withstand immersion in water up to one meter for 30 minutes. It is crucial for outdoor cameras to ensure their efficient operation in harsh weather conditions.

**Q5: Why should I choose a specialized company like CAM TOWER for my *Security Camera System Guide* and installation?
A5: Choosing a specialized company ensures you receive accurate technical consultation, selection of appropriate cameras for your needs, professional installation for maximum system efficiency, certified product warranty, and continuous technical support. This helps you avoid common mistakes that lead to wasted money and ineffective surveillance systems.
